Daim ntawv thov tseem ceeb

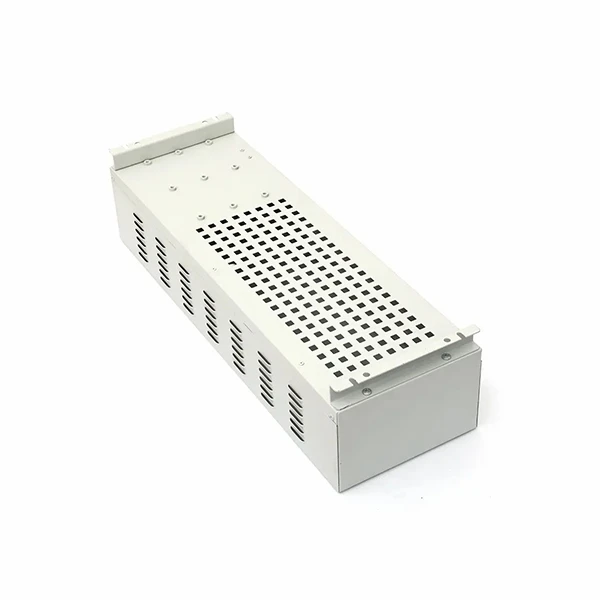

BRU-L series ntawm cov khoom yog cov thawv resistor uas tau sib sau ua ke nrog cov hlau Resistor lossis aluminium plhaub resistors. Lawv siv tau rau cov hluav taws xob siv hluav taws xob ntawm inverter rau cov khoom siv braking nrog lub zog loj thiab tam sim no, cov khoom siv ntsuas, of elevator, crane, dov mil, chaw nres nkoj tshuab, tsheb ciav hlau thiab cav zaus converter zog noj braking circuits.Its kev khiav hauj lwm voltage yog 500V {3}}VDC thiab ntsuas hluav taws xob nyob ntawm 8KW txog 72KW.
Khoom nta
|
Cheebtsam |
Hlau qhov txhab Resistor |
|
Cov khoom siv lub thawv |
galvanized ntawv los yog stainless hlau |
|
Ntau yam ntawm lub zog ntsuas |
8 KW{1}}KW |
|
Ntau qhov voltage |
0.5KV-3KV |
|
Ntau yam tsis kam |
1Ω-1KΩ |
|
Voltage kuj |
2.5KV / 1min 50Hz Tsis ya arcs lossis flickering |
|
IP chav kawm |
IP20 IP23 Yeem qhov muag tsis pom |
|
Kev vibration |
0.5g |
|
Rated kub nce |
375 degree |
|
Kub drift |
80-400ppm/degree |
|
Cov khoom thauj |
0Cr25AL5//Ni80Cr20 |

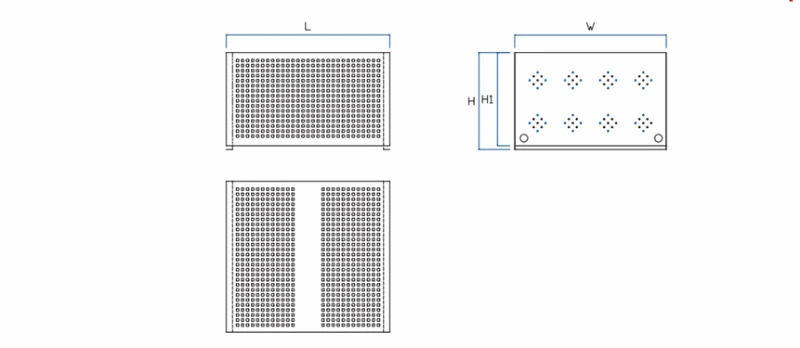

Daim duab

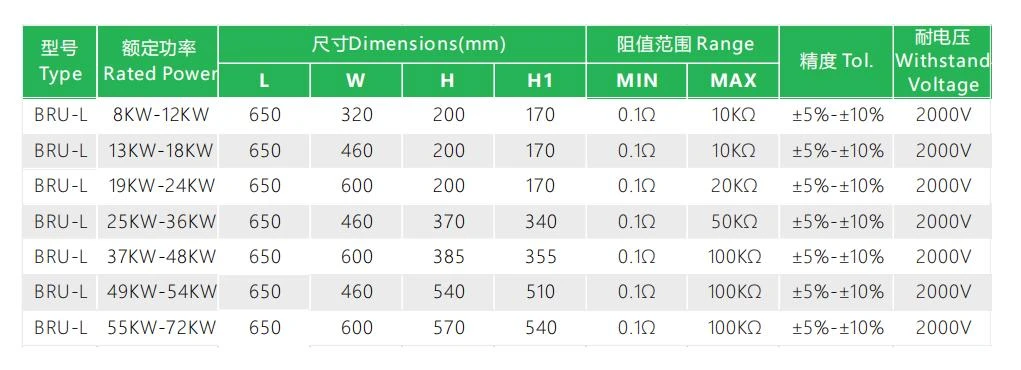

Hom Specification
Peb Qhov Zoo
- Galvanized phaj, tsis tas yuav txau hmoov, tsis yooj yim rau xeb, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig.
- Lub davhlau ya nyob twg yog ua los ntawm tooj dag, uas nqa ntau dua tam sim no.
- Txais cov khoom tiv thaiv ib puag ncig EPE ntim uas tsis muaj kuab paug rau ib puag ncig.
- Ib qho kev tiv thaiv ib leeg muaj ntau lub zog zoo dua rau kev cuam tshuam tam sim no.
