Kev nthuav qhia

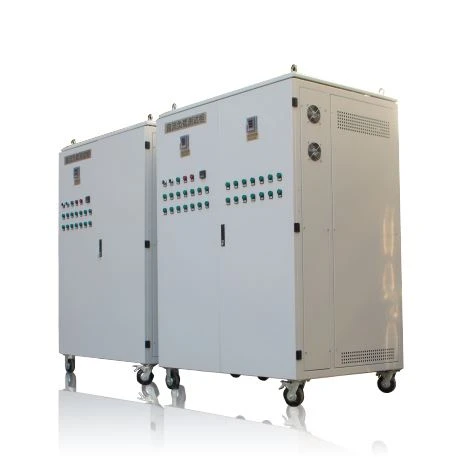

Lub txhab nyiaj thauj khoom yog ib qho khoom siv hluav taws xob tseem ceeb uas kuaj pom thiab pom cov hluav taws xob hluav taws xob ntawm cov khoom siv digital lossis analogue. Tsis tas li ntawd, lub 'meter' muaj lub peev xwm ruaj khov los ntsuas thiab tswj hluav taws xob hluav taws xob. Qhov no txhais tau hais tias thaum lub zog ntawm cov hluav taws xob hluav taws xob nce, lub txhab nyiaj thauj khoom tuaj yeem ua tau zoo sib xws nrog lub zog ntxiv nrog lub zog uas twb tau khaws cia lawm.

Daim ntawv thov tseem ceeb

Lub tshuab hluav taws xob teeb tsa kev ntsuas ntse, muaj peev xwm ua tau 2MW ~ 40MW.As qhov kev ntsuas loj, sab nraum zoov, siv sab hauv tsev, yooj yim rau kev thauj mus los, txais yuav cov thawv tshwj xeeb tsim. Lub thawv lub cev yog ua los ntawm cov hlau uas yog siv los ua ke thiab pleev xim rau. Nws muaj qhov zoo nkauj zoo nkauj, nrog shading, tiv thaiv los nag, tiv thaiv kev ua tub sab, muaj suab nrov me me, muaj peev xwm thauj khoom muaj zog, ntau qhov ntsuas tau zoo dua li cov khoom lag luam.

Kev Xav Tau

Rated voltage	DC120V, 270V, 330V
Rated tam sim no	30A-60A
Load khoom	ntshiab tsis kam
Txoj cai tam sim no	tag nrho peb qhov voltages raws li 1A-600A
Load yuam kev	± 5%
qhov tseeb voltage	0.5%
kev daws teeb meem voltage	0.5V
Tam sim no iav configuration	1A 2A 2A 5A 10A 20A 20A 50A 100A * 5, tag nrho ntawm 13 cov ntaub ntawv, 3 txoj kev tag nrho ntawm 39 cov ntaub ntawv
Tswj qhov system	cov cuab yeej tswj lub thawv muaj peb lub iav tam sim no, txhua qhov hluav taws xob sib raug rau ib qho kev hloov
Thaum tshav kub kub dissipation hom	yuam cua txias
Zaub system	LED digital ammeter, voltmeter
Cov khoom siv hluav taws xob	380V 3 theem AC
Ua haujlwm style	ua hauj lwm mus sij hawm ntev
Ua haujlwm ib puag ncig	sab hauv
