Kev nthuav qhia

Tswj Transformer feem ntau siv rau AC 50Hz (los yog 60Hz), voltage 1000V thiab cov nram qab no circuits, nyob rau hauv cov nqi load yuav ua hauj lwm mus sij hawm ntev. Feem ntau siv rau hauv cov cuab yeej siv tshuab, cov cuab yeej siv tshuab ua hluav taws xob tswj teeb pom kev zoo thiab ntsuas lub zog.

Daim ntawv thov tseem ceeb

Voltage transformation, tam sim no transformation, impedance transformation, kev rho tawm, voltage stabilization (magnetic saturation transformer), thiab lwm yam.

Muaj nuj nqi

Yooj yim nkag mus rau qhov tsim nyog voltage; qhov thib ob yog nruj me ntsis txwv tsis pub ua hauv av.
Anti cuam tshuam.

Khoom nta

Lub ntim me me
Kev ruaj ntseg thiab txhim khu kev qha thaiv
Kev tiv thaiv qib siab
Kev ua tau zoo

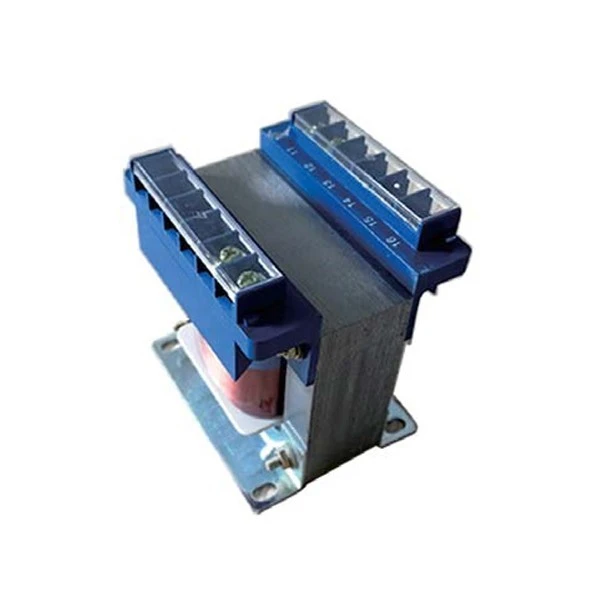

Daim duab

Hom Specification

Hom	Qhov Loj (mm)			Installation Dimensions (hli)
Hom	L	W	H	W	D
BK-25VA	78	65	90	56	50
BK-50VA	84	74	98	64	60
BK-100VA	96	85	105	85	65
BK-150VA	102	85	108	76	71
BK-200VA	102	92	108	76	77
BK-250VA	114	101	140	90	85
BK-300VA	114	106	140	90	90
BK-400VA	132	108	165	102	90
BK-500VA	132	120	165	102	102
BK-1KVA	150	140	170	120	115
BK -1.5KVA	150	160	170	120	130
BK-2KVA	180	180	195	130	140
BK-3KVA	192	190	200	140	155
BK-5KVA	230	210	270	170	160

Hom	Qhov Loj (mm)			Installation Dimensions (hli)
Hom	L	W	H	W	D
JBK-63VA	78	65	85	56	53
JBK-100VA	84	84	95	64	70
JBK-160VA	96	92	110	85	75
JBK-250VA	96	104	110	85	87
JBK-400VA	120	100	130	90	85
JBK-630VA	150	108	170	122	90
JBK-800VA	150	130	170	120	105
JBK-1KVA	150	135	170	122	105
JBK-1.7KVA	168	160	185	130	108
JBK-2KVA	168	170	195	170	145
JBK-5KVA	228	205	260	170	145
