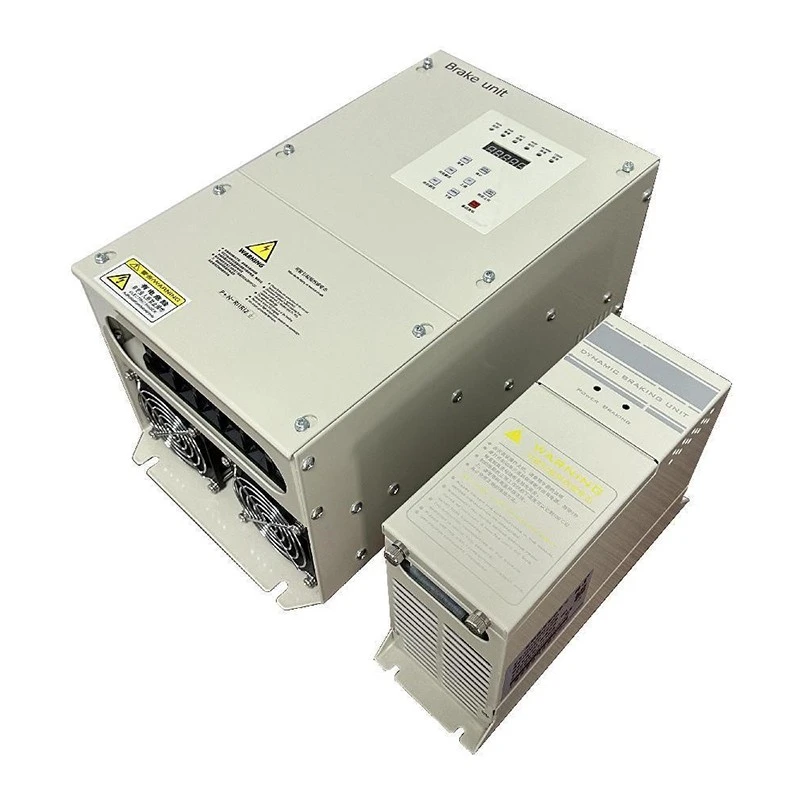

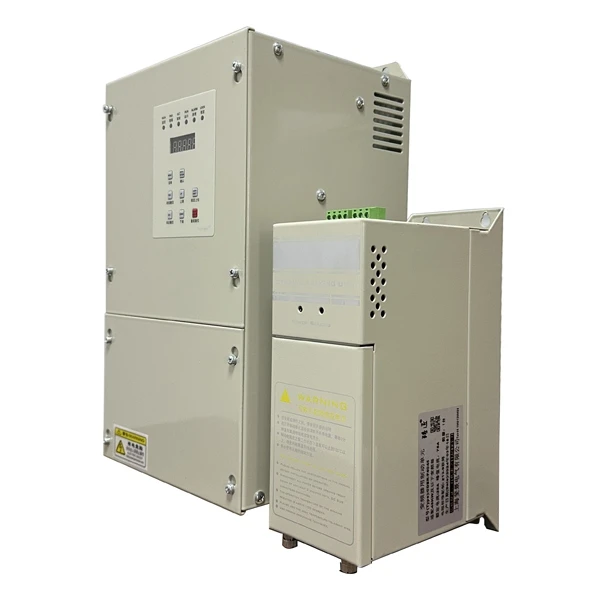

Kev nthuav qhia
Braking unit, lub npe tag nrho yog 'inverter mob siab rau lub zog braking unit', los yog 'inverter mob siab rau lub zog tawm tswv yim chav tsev', feem ntau yog siv rau kev tswj ntawm cov neeg kho tshuab hnyav loads, braking ceev yuav tsum tau ceev heev zaus, lub regenerative zog tsim los ntawm lub cev muaj zog los ntawm Nws yog tsuas yog siv los tswj cov neeg kho tshuab hnyav thiab nrawm nrawm nrawm, siv lub zog rov tsim dua tshiab uas tsim los ntawm lub cev muaj zog los ntawm kev nres nres lossis xa rov qab lub zog rov qab mus rau lub zog hluav taws xob.
Daim ntawv thov tseem ceeb
Thaum lub zaus converter qeeb thiab nres, lub cev muaj zog yuav nyob rau hauv lub generating lub xeev. Thaum lub tsheb npav Dc voltage ntawm zaus converter nce mus rau ib qho nqi, lub nres nres yuav cia li qhib lub braking muaj nuj nqi, (ieconnect tus nres tsis kam) thiab haus lub zog los ntawm cov kuj. CDBR-F series yog lub luag hauj lwm ntawm nres units rau lub cev muaj zog slowdown nyob rau hauv tus txheej txheem ntawm renewable zog, zog noj nyob rau hauv daim ntawv ntawm braking resistor, ib tug zaus converter rau lub braking kev ua tau zoo thiab txo lub sij hawm inverter braking lub sij hawm .Apply rau tag nrho cov inverter nrog cov ntws. overheating lGBT breakdown tswb tso zis muaj nuj nqi yog qhov zoo tshaj plaws nres modules.
Khoom nta
|
Braking pib voltage (V) |
(380V) DC630/660/690/730/760V (± 10V) 5 adjustable, (690V) DC990-1155V voltage ntawm ib qho adjustable |
|
Qhov siab tshaj plaws hysteresis yuam kev |
cav 16v |
|
Synchronization teeb liab |
pom zoo tsis pub ntau tshaj 3 lub tshuab ua ke |
|
Radiator Overheating Protection Fault output |
kub hloov {{0}}} degree RELAY tiv tauj 0.6A, 250VAC/2A, 30VDC (Ta, Tb, Tc) (qee cov qauv tsis tuaj nrog qhov ua txhaum qhov tso tawm kiv cua khiav haujlwm |
|
Kub |
module kub tshaj 45 degree C thaum kiv cua pib ua haujlwm (qee lub tshuab tsis tuaj nrog kiv cua kom yeej zoo) |
|
Ambient kub |
-10 degree ~ +40 degree (tsis khov) |
|
Cia kub |
-10 degree ~ +50 degree |
|
Cov av noo |
90% RH (tsis muaj Frost) |
|
Kev vibration |
1G ntawm 10 ~ 20HZ, 0.2G ntawm 20 ~ 50HZ |
Daim duab
Hom Specification
Qhov zoo
- Raws li kev ua haujlwm ntawm chav nres tsheb yog lub sijhawm ua haujlwm luv luv, uas yog, txhua lub sijhawm lub zog ntawm lub sijhawm luv luv, nyob rau hauv lub sijhawm fais fab, nws qhov kub thiab txias yog tsawg dua qhov kev ruaj ntseg ntawm qhov kub thiab txias, txhua lub sij hawm lub hwj chim tom qab lub sij hawm intermittent ntev, nyob rau hauv lub intermittent lub sij hawm, qhov kub thiab txias yog txaus kom poob mus rau tib yam li lub ambient kub, yog li ntawd lub braking resistor lub hwj chim ntsuam xyuas yuav zoo heev, thiab tus nqi kuj txo.
- Vim tias IGBT tsuas yog lub sijhawm braking yog ms-level Ntxiv rau, vim tias tsuas muaj ib qho IGBT xwb, lub sijhawm braking yog ms, qhov kev ua tau zoo ntawm lub hwj chim raj tig-rau thiab tig-tawm qhov ntsuas qhov xav tau tsawg, thiab txawm yuav tsum tau lub sij hawm tig-tawm yog luv li sai tau, thiaj li yuav txo tau lub turn-off mem tes voltage, tiv thaiv lub hwj chim raj.
- Kev tswj mechanism kuj tseem yooj yim, kev siv kuj yooj yim.
Daim ntawv pov thawj khoom
Ntim & Thauj

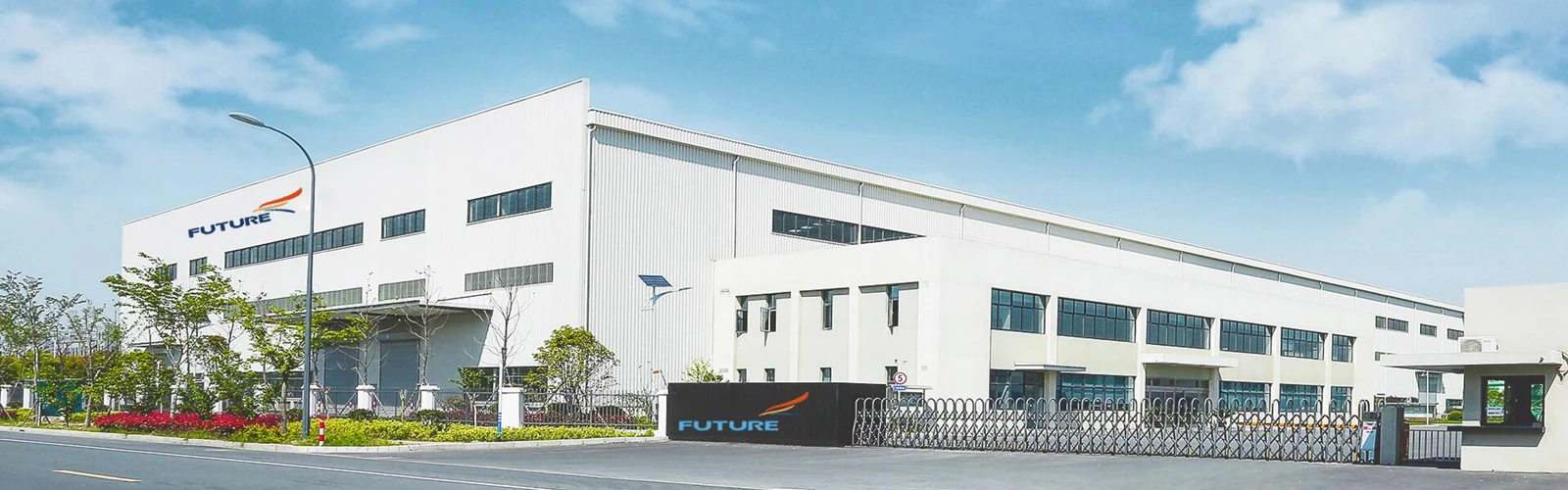

Peb lub Hoobkas
Yav tom ntej (Suzhou) Electronic Technology Co., Ltd. tau tsim nyob rau xyoo 2016, cov kws tshaj lij muaj ntau tshaj 20 xyoo dhau los! Nws yog lub tuam txhab tsim khoom lag luam tshwj xeeb hauv kev tshawb fawb thiab tsim cov resistors, lim, reactors, braking units, zog recuperation units, transformers, thiab muaj ntau xyoo ntawm kev paub nyob rau hauv kev koom tes nrog loj factories, thiab muaj peev xwm ua hauj lwm seamlessly nrog cov neeg siv khoom sib txawv. qhov ntau thiab tsawg.
Xyoo 2018, Peb tau ua tiav rau "FLYVIEW" hom ywj pheej, thiab tshaj tawm ISO9001, CE thiab lwm yam kev pov thawj thoob ntiaj teb.
Peb tau cog lus rau kev txhim kho thiab kev tsim kho tshiab ntawm peb cov khoom, muab cov khoom sib tw zoo rau cov neeg siv khoom hauv kev siv tshuab, lub zog tshiab, kev tsheb ciav hlau, thiab lwm yam kev lag luam, thiab muab cov neeg siv khoom nrog cov kev daws teeb meem thiab cov kev pabcuam zoo. Yuav kom cov neeg siv khoom zoo, ua peb qhov zoo tshaj plaws.
Cov khoom zoo yog peb cov kev sib tw tseem ceeb! Peb ntseeg ruaj khov tias tsuas yog cov ntaub ntawv zoo tshaj plaws thiab kev ua haujlwm zoo tshaj plaws tuaj yeem ua tau cov khoom zoo tshaj plaws ntawm tus ntsuj plig ntawm 6Sigma.
Zoo li kub, zoo tsis muaj kev txhawj xeeb!
Peb tos ntsoov yuav koom tes nrog koj! Tsim kom muaj nuj nqis ua ke!
